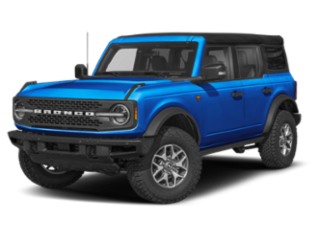

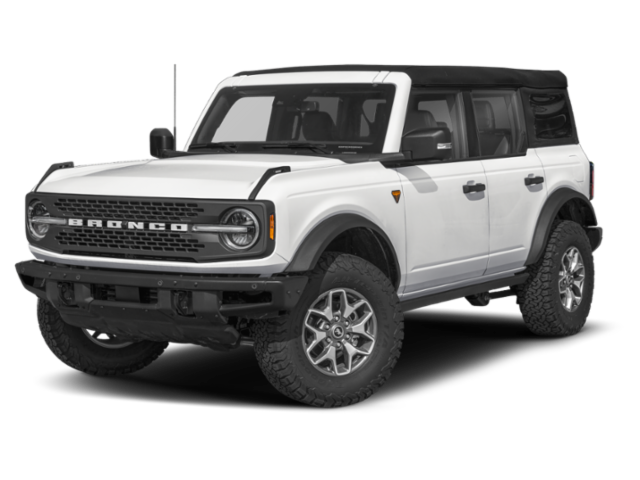

2025 Ford Bronco
at Merit Ford Sales Ltd
Starting at
$69,005
+ Taxes & LicensingBase Price
$66,810
Destination
$2,195
| Four Wheel Drive | |
| 5 | |
| 14.7 (2024) | |
| 13.8 (2024) | |
| Intercooled Turbo Regular Unleaded I-4 |
| 275 @ 5700 | |
| 315 @ 3400 | |
| 78.7 | |
| Manual w/OD N/A |
View the latest
Offers & Promotions
Discover exciting national offers from Ford Canada
Offers & Promotions
Try This Bronco Today
Get the Best Value for Your Trade-In
Finance Your Car With Us

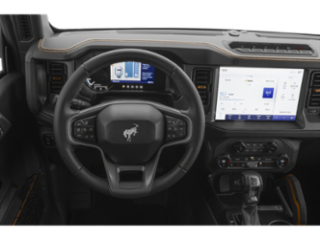

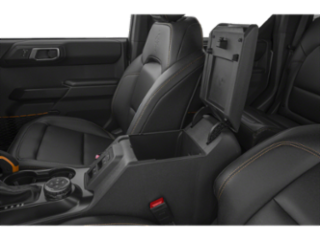

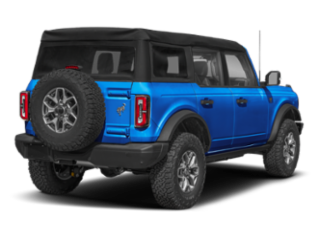

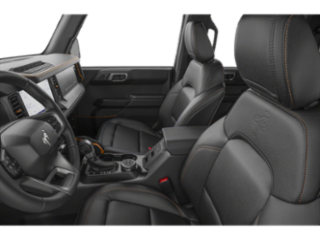

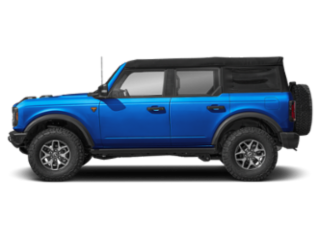

Get Your FinancingView The Bronco From All Angles
2025 Ford Bronco
for sale at Merit Ford Sales Ltd
14.7 (2024)
L/100 km
13.8 (2024)
L/100 km
Key Technical Specifications
| Four Wheel Drive | |
| 5 | |
| 14.7 (2024) | |
| 13.8 (2024) | |
| Intercooled Turbo Regular Unleaded I-4 | |
| 275 @ 5700 | |
| 315 @ 3400 | |
| 78.7 | |
| Manual w/OD N/A |
Warranty Info
Basic:
3 Years/60,000 km
Drivetrain:
5 Years/100,000 km
Corrosion:
5 Years/Unlimited km
Roadside Assistance:
5 Years/100,000 km
Recall Info
US NHTSA CAMPAIGN ID:
24V770000
Mfg's Report Date:
OCT 15, 2024
Component:
SUSPENSION:FRONT:CONTROL ARM:UPPER BALL JOINT
Potential Number Of Units Affected:
2416
Summary:
Ford Motor Company (Ford) is recalling certain 2024 Ranger, and 2024-2025 Bronco vehicles. The front upper control arm ball joint nut may not have been installed or tightened properly, allowing the front upper control arm to detach from the knuckle assembly.
Consequence:
A detached control arm can cause a loss of vehicle steering and control, increasing the risk of a crash.
Remedy:
Dealers will inspect and verify that the ball joint fastener is tightened properly. If a fastener is loose or missing, the dealer will replace the ball joint and knuckle assembly as necessary, free of charge. Owner notification letters were mailed on November 20, 2024. Owners may contact Ford Customer Service at 1-866-436-7332. Ford's number for this recall is 24S64.
Dates of Manufacture:
MAY 31, 2024 to SEP 04, 2024
Manufacturer Recall Number:
24S64
All Technical Specs by Group
Chassis
- Standard Weight - Front: 0
- Standard Weight - Rear: 0
- Gross Axle Wt Rating - Front: 1,437.91
- Gross Axle Wt Rating - Rear: 1,392.55
- Curb Weight - Front: 1,253.3
- Curb Weight - Rear: 989.76
- Option Weight - Front: 0
- Option Weight - Rear: 0
- Reserve Axle Capacity - Front: 184.62
- Reserve Axle Capacity - Rear: 402.8
- As Spec'd Curb Weight: 2,243.05
- As Spec'd Payload: 523.91
- Maximum Payload Capacity: 523.91
- Gross Combined Wt Rating: 3,982.61
- Dead Weight Hitch - Max Trailer Wt.: 1,560.38
- Dead Weight Hitch - Max Tongue Wt.: 156.04
- Wt Distributing Hitch - Max Trailer Wt.: 1,560.38
- Wt Distributing Hitch - Max Tongue Wt.: 156.04
- Fifth Wheel Hitch - Max Trailer Wt.: N/A
- Maximum Trailering Capacity: 1,560.38
- Fifth Wheel Hitch - Max Tongue Wt.: N/A
- Frame Type: N/A
- Sect Modulus Rails Only: N/A
- Frame RBM: N/A
- Frame Strength: N/A
- Frame Thickness: N/A
- Suspension Type - Front: Short And Long Arm
- Suspension Type - Rear: Multi-Link
- Spring Capacity - Front: N/A
- Spring Capacity - Rear: N/A
- Axle Type - Front: Independent
- Axle Type - Rear: Rigid Axle
- Axle Capacity - Front: N/A
- Axle Capacity - Rear: N/A
- Axle Ratio (:1) - Front: 4.70
- Axle Ratio (:1) - Rear: 4.70
- Shock Absorber Diameter - Front: N/A
- Shock Absorber Diameter - Rear: N/A
- Stabilizer Bar Diameter - Front: N/A
- Stabilizer Bar Diameter - Rear: N/A
- Front Tire Order Code: N/A
- Rear Tire Order Code: N/A
- Spare Tire Order Code: N/A
- Front Tire Size: LT285/70R17
- Rear Tire Size: LT285/70R17
- Spare Tire Size: Full-Size
- Front Tire Capacity: N/A
- Rear Tire Capacity: N/A
- Spare Tire Capacity: N/A
- Revolutions/Mile @ 45 mph - Front: N/A
- Revolutions/Mile @ 45 mph - Rear: N/A
- Revolutions/Mile @ 45 mph - Spare: N/A
- Front Wheel Size: 17 X 8
- Rear Wheel Size: 17 X 8
- Spare Wheel Size: Full-Size
- Front Wheel Material: Aluminum
- Rear Wheel Material: Aluminum
- Spare Wheel Material: Aluminum
- Steering Type: Rack-Pinion
- Steering Ratio (:1), On Centre: N/A
- Steering Ratio (:1), At Lock: N/A
- Turning Diameter - Curb to Curb: N/A
- Turning Diameter - Wall to Wall: N/A
- Brake Type: 4-Wheel Disc
- Brake ABS System: 4-Wheel
- Brake ABS System (Second Line): 4-Wheel
- Disc - Front (Yes or ): Yes
- Disc - Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness: 309.88
- Rear Brake Rotor Diam x Thickness: 307.34
- Drum - Rear (Yes or ): N/A
- Rear Drum Diam x Width: N/A
- Fuel Tank Capacity, Approx: 78.7
- Aux Fuel Tank Capacity, Approx: N/A
- Fuel Tank Location: N/A
- Aux Fuel Tank Location: N/A
- Gross Axle Weight Rating: 2,830.46
- Curb Weight: 2,243.05
- Reserve Axle Capacity: 587.41
- Total Option Weight: 0
- Payload Weight Front: 0
- Payload Weight Rear: 0
- Gross Vehicle Weight Rating: 2,766.96
Vehicle
- Kg/yr of CO2 Emissions @ 20K km/year: N/A
- G/km Of CO2 Emissions: 336 (Est)
Powertrain
- Drivetrain: Four Wheel Drive
- EnerGuide Estimate - City: 14.7 (2024)
- EnerGuide Estimate - Hwy: 13.8 (2024)
- Cruising Range - City: 535.06
- Cruising Range - Hwy: 569.97
- Engine Order Code: 99H
- Engine Type: Intercooled Turbo Regular Unleaded I-4
- Displacement: 2.3 L/140
- Fuel System: Gasoline Direct Injection
- SAE Net Horsepower @ RPM: 275 @ 5700
- SAE Net Torque @ RPM: 315 @ 3400
- Trans Order Code: 44Q
- Trans Type: 7
- Trans Description Cont.: Manual w/OD
- Trans Description Cont. Again: N/A
- First Gear Ratio (:1): 4.28
- Second Gear Ratio (:1): 2.37
- Third Gear Ratio (:1): 1.45
- Fourth Gear Ratio (:1): 1.00
- Fifth Gear Ratio (:1): 0.78
- Sixth Gear Ratio (:1): 0.65
- Reverse Ratio (:1): 5.62
- Clutch Size: N/A
- Trans Power Take Off: N/A
- Final Drive Axle Ratio (:1): N/A
- Transfer Case Model: Electronic
- Transfer Case Gear Ratio (:1), High: N/A
- Transfer Case Gear Ratio (:1), Low: N/A
- Transfer Case Power Take Off: No
- Cold Cranking Amps @ 0° F (Primary): 800
- Cold Cranking Amps @ 0° F (2nd): 800
- Maximum Alternator Capacity (amps): 250
- Cold Cranking Amps @ 0° F (3rd): N/A
- Total Cooling System Capacity: N/A
- Engine Oil Cooler: None
- Seventh Gear Ratio (:1): N/A
- Estimated Battery Range: N/A
Dimensions
- Passenger Capacity: 5
- Front Head Room: 1,099.82
- Front Leg Room: 1,094.74
- Front Shoulder Room: 1,414.78
- Front Hip Room: 1,419.86
- Second Head Room: 1,043.94
- Second Leg Room: 922.02
- Second Shoulder Room: 1,435.1
- Second Hip Room: 1,391.92
- Wheelbase: 2,948.94
- Length, Overall: 4,810.76
- Width, Max w/o mirrors: 1,927.86
- Height, Overall: 1,877.06
- Track Width, Front: 1,651
- Track Width, Rear: 1,651
- Overhang, Front: N/A
- Overhang, Rear w/o bumper: N/A
- Front Bumper to Back of Cab: N/A
- Cab to Axle: N/A
- Cab to End of Frame: N/A
- Ground to Top of Load Floor: N/A
- Ground to Top of Frame: N/A
- Frame Width, Rear: N/A
- Ground Clearance, Front: N/A
- Ground Clearance, Rear: N/A
- Min Ground Clearance: 210.82
- Body Length: 0
- Rear Door Opening Height: N/A
- Rear Door Opening Width: N/A
- Cargo Area Length @ Floor to Seat 1: N/A
- Cargo Area Length @ Floor to Seat 2: N/A
- Cargo Area Length @ Floor to Seat 3: N/A
- Cargo Box Width @ Top, Rear: N/A
- Cargo Area Width @ Beltline: N/A
- Cargo Box Width @ Floor: N/A
- Cargo Box Width @ Wheelhousings: N/A
- Cargo Box (Area) Height: N/A
- Liftover Height: N/A
- Tailgate Width: N/A
- Cargo Volume: N/A
- Cargo Volume to Seat 1: 2,350.3
- Cargo Volume to Seat 2: 1,084.54
- Cargo Volume to Seat 3: N/A
- Ext'd Cab Cargo Volume: N/A
- Cab to Body: N/A
Standard Equipment
MECHANICAL

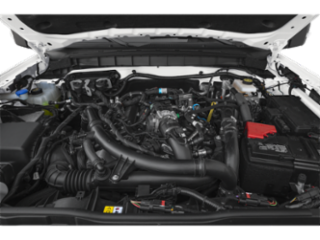

- Engine: 2.3L EcoBoost I-4 (STD)
- Transmission: 7-Speed Manual -inc: granny gear and crank in gear function and Hill Descent Control (STD)
- 4.7 Axle Ratio (STD)
ADDITIONAL EQUIPMENT
- Engine Auto Stop-Start Feature
- Electronic Transfer Case
- Part And Full-Time Four-Wheel Drive
- 80-Amp/Hr 800CCA Maintenance-Free Battery w/Run Down Protection
- Regenerative 250 Amp Alternator
- Towing Equipment -inc: Trailer Sway Control
- 6 Skid Plates
- 508.0 Kgs Maximum Payload
- GVWR: 6,100 lbs
- Off-Road Suspension
- Bilstein Remote Reservoir Shock Absorbers
- Front Active w/Driver Control Anti-Roll Bar
- Electric Power-Assist Steering
- Single Stainless Steel Exhaust
- 78.7 L Fuel Tank
- Auto Locking Hubs
- Short And Long Arm Front Suspension w/Coil Springs
- Solid Axle Rear Suspension w/Coil Springs
- 4-Wheel Disc Brakes w/4-Wheel ABS, Front And Rear Vented Discs, Brake Assist, Hill Descent Control, Hill Hold Control and Electric Parking Brake
- Upfitter Switches
- Wheels: 17" Machined Carbonized Aluminum -inc: Grey-painted
- Aluminum Spare Wheel
- Full-Size Spare Tire Mounted Outside Rear
- Clearcoat Paint
- Black Front Bumper w/2 Tow Hooks
- Black Rear Step Bumper w/2 Tow Hooks
- Black Fender Flares
- Black Side Windows Trim
- Black Door Handles
- Black Power Heated Side Mirrors w/Convex Spotter and Manual Folding
- Removable Rear Window
- Variable Intermittent Wipers
- Deep Tinted Glass
- Fully Galvanized Steel Panels
- Grey Grille
- Manual Convertible Top w/Fixed Roll-Over Protection and Top

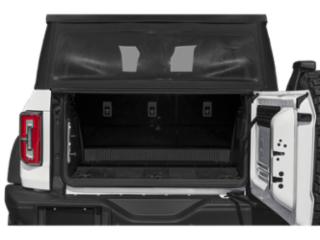

- Swing-Out Rear Cargo Access
- Tailgate/Rear Door Lock Included w/Power Door Locks
- Ford Co-Pilot360 - Autolamp Auto On/Off Reflector Led Low/High Beam Auto High-Beam Headlamps w/Delay-Off
- Headlights-Automatic Highbeams
- LED Brakelights
- Radio w/Seek-Scan, Clock, Speed Compensated Volume Control, Steering Wheel Controls and Radio Data System
- Radio: AM/FM Stereo -inc: 7 speakers including subwoofer
- Streaming Audio
- Fixed Antenna
- SiriusXM w/360L -inc: super categories/live sports categories, for you recommendations and SiriusXM listener profiles, a 3-month prepaid subscription, Trial length and service availability may vary by model, model year or trim, SiriusXM audio and data services each require a subscription sold separately, or as a package, by SiriusXM Radio Inc, Your SiriusXM service will automatically stop at the end of your trial unless you decide to subscribe, If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates, Fees and taxes apply, To cancel you must call SiriusXM at 1-888-539-7474, See SiriusXM customer agreement for complete terms at www.siriusxm.ca, All fees and programming subject to change, Not all vehicles or devices are capable of receiving all services offered by SiriusXM, Current information and features may not be available in all locations, or on all receivers, Satellite and streaming lineups vary slightly, 2020 SiriusXM Radio Inc Sirius, XM, SiriusXM and all related marks and logos are trademarks of Sirius XM Radio Inc

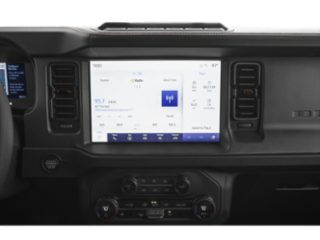

- SYNC 4 -inc: 12" LCD capacitive touchscreen w/swipe capability, wireless phone connection, cloud connected, 911 Assist, wireless Apple CarPlay and Android Auto compatibility, digital owner's manual and conversational voice command recognition
- 2 LCD Monitors In The Front
- Driver Seat
- Passenger Seat

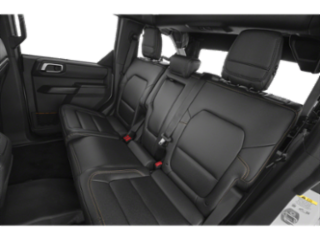

- 60-40 Folding Split-Bench Front Facing Manual Reclining Fold Forward Seatback Vinyl Rear Seat
- Manual Tilt/Telescoping Steering Column
- Gauges -inc: Speedometer, Odometer, Voltmeter, Engine Coolant Temp, Tachometer, Inclinometer, Trip Odometer and Trip Computer
- Power Rear Windows and Removable 3rd Row Windows
- Heated Leather Steering Wheel
- Front Cupholder
- Compass
- Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry, Illuminated Ignition Switch and Panic Button
- Proximity Key For Doors And Push Button Start
- Cruise Control w/Steering Wheel Controls
- HVAC -inc: Underseat Ducts
- Voice Activated Dual Zone Front Automatic Air Conditioning
- Locking Glove Box
- Driver Foot Rest
- Leather/Metal-Look Gear Shifter Material
- Interior Trim -inc: Metal-Look Door Panel Insert and Metal-Look Interior Accents
- Marine Grade Vinyl Heated Bucket Seats -inc: 6-way manual driver and passenger including fore/aft, up/down and recline and front driver/passenger seat back MOLLE strap system
- Day-Night Rearview Mirror
- Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination, Driver And Passenger Auxiliary Mirror
- Full Floor Console w/Locking Storage, Mini Overhead Console and 3 12V DC Power Outlets
- Front Map Lights
- Fade-To-Off Interior Lighting
- Vinyl/Rubber Floor Trim
- Full Vinyl/Rubber Floor Covering -inc: Carpet Front And Rear Floor Mats
- Cargo Area Concealed Storage
- Cargo Space Lights
- Smart Device Remote Engine Start
- Tracker System

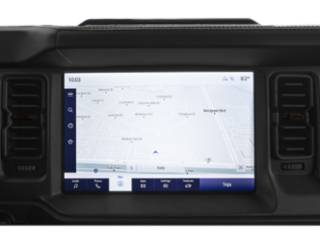

- Connected Navigation -inc: 1-year subscription, pinch-to-zoom capability, live traffic, predictive destinations and route guidance and One Box search, Navigation services require SYNC4 and Bronco Trail app, complimentary connect service and the FordPass app (see FordPass terms for details), Customer receives a complimentary 1-year subscription of navigation services when an eligible vehicle is added to a member's FordPass account, Trial period begins on the new vehicle warranty start date, At the end of the complimentary period, navigation service will terminate, Connected service and features depend on compatible Bell network availability, Evolving technology/cellular networks/vehicle capability may limit functionality and prevent operation of connected features, FordPass app, compatible w/select smartphone platforms, is available via a download, Message and data rates may apply
- Dashboard Storage, Driver / Passenger And Rear Door Bins and 2nd Row Underseat Storage
- Power 1st Row Windows w/Driver And Passenger 1-Touch Up/Down
- Delayed Accessory Power
- Power Door Locks w/Autolock Feature
- Driver Information Centre
- Redundant Digital Speedometer
- Trip Computer
- Outside Temp Gauge
- Digital/Analog Appearance
- Manual Adjustable Front Head Restraints and Foldable Rear Head Restraints
- Front Centre Armrest
- 2 Seatback Storage Pockets
- Perimeter Alarm
- Immobilizer
- Air Filtration
- 3 12V DC Power Outlets
- AdvanceTrac w/Roll Stability Control Electronic Stability Control (ESC) And Roll Stability Control (RSC)
- ABS And Driveline Traction Control
- Side Impact Beams
- Dual Stage Driver And Passenger Seat-Mounted Side Airbags
- Automatic Emergency Braking (AEB)
- Collision Mitigation-Front
- Reverse Sensing System Rear Parking Sensors
- BLIS (Blind Spot Information System) Blind Spot
- Cross-Traffic Alert
- Lane-Keeping System Lane Keeping Assist
- Lane-Keeping System Lane Departure Warning
- Driver Monitoring-Alert
- Tire Specific Low Tire Pressure Warning
- Dual Stage Driver And Passenger Front Airbags
- Safety Canopy System Curtain 1st And 2nd Row Airbags
- Personal Safety System Airbag Occupancy Sensor
- Restricted Driving Mode
- Rear Child Safety Locks
- Outboard Front Lap And Shoulder Safety Belts -inc: Rear Centre 3 Point and Pretensioners
- Back-Up Camera
EXTERIOR
- Tires: LT285/70R17 A/T -inc: full size spare tire w/TPMS (STD)
Price Quote
